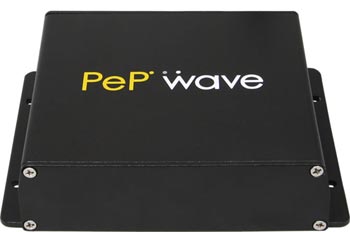

Pepwave CarFi 400

Pepwave CarFi 400, High-Speed Wi-Fi Connectivity on the Move (400mW).

Виробник:

Код товару: # 1566

на
складі

Характеристики

PePWave CarFi 400; High-Speed Wi-Fi Connectivity on the Move (400mW)

The PePWave CarFi solution fills the needs of mobile professionals who need connectivity while in or near their cars. CarFi's enhanced roaming algorithm makes it ready to enable roadside Wi-Fi connectivity anywhere in a city's Wi-Fi coverage area. It makes staying connected in your car a comfortable experience.

There are many groups of workers who can benefit from mobile Wi-Fi access, however achieving a stable connection with a laptop or PDA can be a frustrating experience. Private companies and individuals like realtors, contractors, salespeople, and other field service employees can now take advantage of high speed data while on the vehicles. PePWave CarFi enhances the productivity of workers by providing a fast and secure Wi-Fi connection in and around a stationary vehicle.

PePWave CarFi enables stable in-car Wi-Fi connectivity.

Reliable In-Car Wi-Fi Access
CarFi continuously scans and associates to the nearest citywide Wi-Fi transmitter. It roams quickly to keep connectivity ready anywhere in a city's Wi-Fi coverage area.

High Power and Receive Sensitivity
CarFi's high-power radio unit is designed with boosted transmit power and receive sensitivity to facilitate great connectivity to a citywide Wi-Fi network while in your vehicle. Mobile professionals can now afford to enjoy high speed Wi-Fi access while away from the office.

Benefits:

  • Long range and high speed
  • Fast roaming
  • Easy to install
  • Industrial grade, ruggedized enclosure
  • Professionally designed for use in vehicles

Enabling mobile Internet for public transportation systems, police, fire services and city workers.


Specification

2.4GHz 802.11b/g Series

Model CarFi E200 CarFi 200 CarFi 400
Product Code OPW-206 OPW-205 OPW-402
Country/Region Europe US/International
Functionality
Wi-Fi Access Point Yes
Wi-Fi Receiver Yes
Mode NAT Mode
Wi-Fi Specification
WAN 802.11 b/g
LAN 802.11 b/g
1 Fast Ethernet Port
Operating Frequency 2412-2472Mhz 2412-2462Mhz
Transmit Power
802.11b
100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

200mW

23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

(+/- 1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/- 1.0dB)

Transmit Power
802.11g OFDM
20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
23dBm@36Mbps
21dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)
26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11b
-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)
-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)
-97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11g OFDM
-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)
-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)
-94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)
Security 802.1x, 64/128-bit WEP, WPA, WPA2, 802.11i
Hardware
Antenna 5.5 dBi Maganetic-base Omni Metallic Antenna
Antenna Connector RP-SMA Connector
Enclosure Ruggedized Metal Enclosure
Dimensions

127.1W x 107.4D x 32.1H mm.
5.0W x 4.2D x 1.3H in.

Weight 330g
0.7lb
Operational Specificaitons
Power Consumption 5W (Max.) 5W (Max.) 7W (Max.)
Power Input AC Adapter: AC Input 100 to 240V, DC Output 12V
DC Cigarette Lighter Adaptor
Operating Temperature -20~75°C
-4~167°F
Humidity 15 to 95%
Misc.
Certifications CE, RoHS FCC, RoHS
Warranty One-Year Limited Warranty

5GHz 802.11a Series

Model CarFi 205
Product Code OPW-207
Country/Region US/International
Functionality
Wi-Fi Access Point Yes
Wi-Fi Receiver Yes
Mode NAT Mode
Wi-Fi Specification
WAN 802.11 a
LAN 802.11 a
1 Fast Ethernet Port
Operating Frequency 5180-5825Mhz
Transmit Power
802.11a

5.18~5.24GHz
17dBm@6~36Mbps
16dBm@48Mbps
15dBm@54Mbps

5.26~5.32 GHz
20dBm@6~24Mbps
18dBm@36Mbps
16dBm@48Mbps
15dBm@54Mbps

5.745~5.825GHz
18dBm@6~24Mbps
16dBm@36Mbps
14dBm@48Mbps
13dBm@54Mbps

(+/- 1.0dB)

Receive Sensitivity
802.11a
-88dBm@6Mbps
-70dBm@54Mbps

(+/- 1.0dB)

Security 802.1x, 64/128-bit WEP, WPA, WPA2, 802.11i
Hardware
Antenna 2dBi 5.8Ghz Indoor Omni Antenna
Antenna Connector RP-SMA Connector
Enclosure Ruggedized Metal Enclosure
Dimensions

127.1W x 107.4D x 32.1H mm.
5.0W x 4.2D x 1.3H in.

Weight 330g
0.7lb
Operational Specificaitons
Power Consumption 5W (Max.)
Power Input AC Adapter: AC Input 100 to 240V, DC Output 12V
DC Cigarette Lighter Adaptor
Operating Temperature -20~75°C
-4~167°F
Humidity 15 to 95%
Misc.
Certifications FCC, RoHS
Warranty



Package Content
  • 12V Power Supply
  • 5.5 dBi Maganetic-base Omni Metallic Antenna
  • DC Cigarette Lighter Adaptor
  • Documentation CD-ROM
