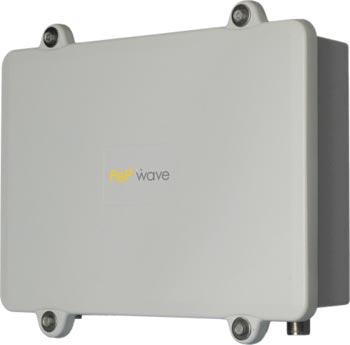

Pepwave Surf AP 400X Outdoor

Pepwave Surf AP 400X Outdoor, 400 mW Outdoor Wi-Fi AP designed for Citywide Wi-Fi.

Виробник:

Код товару: # 1571

на
складі

Характеристики

PePWave Surf AP 400X (400 mW)

The new PePWave Surf AP Outdoor now comes with Integrated Home Wi-Fi Access Point!

Introducing the all-weather
PePWave Surf AP Outdoor
The new PePWave Surf AP Outdoor now comes with Integrated Home Wi-Fi Access Point! (Compare models). Functionality Coupled with Physical Toughness

With all of the functionality of PePWave Surf AP and designed to withstand extreme weather conditions, PePWave Surf AP Outdoor has a waterproof die-cast aluminum enclosure rated at NEMA 6 (IP 67), and sealed with silicone-rubber gaskets at three points. The operating temperature ranges from -40C to +70C (-40F to +158F).

PePWave Surf AP Outdoor is a new-generation all-weather subscriber station for citywide Wi-Fi networks. It is designed to be cost-effective, versatile, and extremely user-friendly. It effortlessly connects citywide Wi-Fi service to individual households and businesses, and is a vital component for seamless citywide availability of wireless high-speed Internet access.

High Power and Receive Sensitivity. Each PePWave Surf AP Outdoor model is equipped with a high-power radio unit that provide sufficient transmit power and receive sensitivity to facilitate enhanced Citywide Wi-Fi signal penetration.

Integrated Home Wi-Fi Access Point. With the new Integrated Home Wi-Fi Access Point feature, PePWave Surf AP Outdoor can wirelessly serve an indoor local area Wi-Fi network consisting of multiple 802.11b/g devices, and deliver a true wireless user experience.

Dynamic Power Control. Its unique dynamic power control capability allows PePWave Surf AP Outdoor to use high power when communicating with the metro-scale mesh network, and retain a lower power setting for indoor home devices thus maximizing radio efficiency and network performance.

PePWave Surf AP Outdoor provides high-grade data encryption, network termination, and delivers a clear demarcation point to the end user. The end user connects via a standard Ethernet connection, with no need for additional software or devices.


Features

Secure Wi-Fi Internet

  • Provide secure authentication and encryption via 802.1x/WEP/WPA/WPA2/802.11i

Easy Self Provisioning

  • Customizable, built-in web server with redirector for simple web-based self configuration
  • Support automatic configuration
  • Hardware Watchdog increases service availability and guarantees firmware integrity

Bandwidth Control

  • Allow easy provisioning of different service levels

Remote Management

  • Change configuration and update firmware remotely

Designed for extreme weather conditions

  • Power over Ethernet 802.3af
  • Industrial grade with operating temperature at -40C to +70C (-40F to +158F)
  • Die-cast aluminum with NEMA 6 (IP67) Dust and Water resistance outdoor packaging

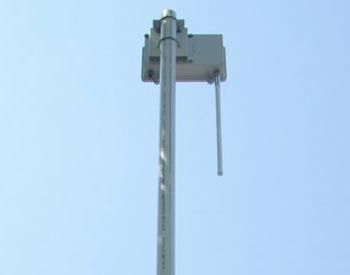

Mounting Bracket
PePWave Surf AP is a proven solution for citywide networks, where uninterrupted carrier-grade service is a no-compromise requirement. Its powerful transmission and outstanding reception capabilities guarantee the best service, even for customers far from the nearest wireless access point.


Specification

Model Surf AP E200-X Surf AP 400-X
Product Code SPW-208 SPW-401
Country/Region Europe US/International
Functionality
Wi-Fi Receiver Yes
Wi-Fi Access Point Yes
Mode NAT Mode
Wi-Fi Specification
WAN 802.11 b/g
LAN 802.11 b/g
1 Fast Ethernet Port
Operating Frequency 2412-2472Mhz 2412-2462Mhz
Transmit Power
802.11b
100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/- 1.0dB)

Transmit Power
802.11g OFDM
20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)
26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11b
-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)
-97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11g OFDM
94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)
-94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)
Security 802.1x, 64/128-bit WEP, WPA, WPA2, 802.11i
Hardware
Antenna Not Included
Antenna Connector Female N-Type Connector
Enclosure Waterproof (IP67) Outdoor Metal Enclosure
Dimensions

273W x 188D x 65H mm.
10.7W x 7.4D x 2.6H in.

Weight 1.7 kg.
3.8 lb.
Operational Specificaitons
Power Consumption 5W (Max.) 7W (Max.)
Power Input Power over Ethernet 802.3af
(Adapter Not Included)
Operating Temperature -20~75°C
-4~167°F
Humidity 15 to 95%
Misc.
Certifications CE, RoHS FCC, RoHS
Warranty

Package Content
  • Pole Mounting Kit
  • Installation Guide
  • Documentation CD-ROM
