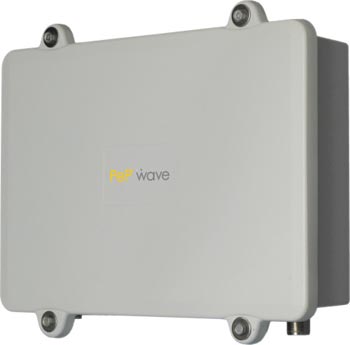

Pepwave Mesh Connector 200 Outdoor

Pepwave Mesh Connector 200 Outdoor, 200 mW Outdoor Mesh Connector Wi-Fi AP designed for Citywide Wi-Fi.

Виробник:

Код товару: # 1572

на
складі

UP DOWN

Характеристики

PePWave Mesh Connector 200X (200 mW)

Cost-Effective, High-Performance Wi-Fi Repeater

Introducing the new PePWave Mesh Connector, the high power Wi-Fi repeater designed to help enterprises and Wireless Internet Service Providers (WISPs) extend Wi-Fi coverage efficiently and cost-effectively in office buildings, warehouse districts, cafes, airports, hotels, and sports facilities alike.

Mesh Connector acts as a Wi-Fi repeater, which helps bridge the distance between devices and links indoor workstations to the Wi-Fi mesh network. Its powerful transmission and outstanding reception capabilities guarantee the best service.

Highlights

  • Transparent Functionality - Mesh Connector works as a layer-2 repeater, allowing users to roam about freely within the expanded coverage area without any interrupted service or IP address change.
  • True Layer-2 Repeater - Together with PePWave True Address Gateway, Mesh Connector is able to overcome 802.11 protocol limitations and enable layer-2 user authentication at your subscriber/access gateway.
  • Always-ON Wi-Fi Access Point - A PePWave exclusive feature, the integrated Wi-Fi AP is always-ON even if there is no connection to the mesh / Citywide Wi-Fi.
  • Two Devices in One - The PePWave Mesh Connector connects to the mesh, while at the same time, wirelessly and transparently serves an indoor local area Wi-Fi network consisting of multiple 802.11b/g devices.
  • Rugged Enclosure - Rugged aluminum enclosure enables the deployment in a variety of locations and embedded applications.
  • High Power Indoor Access Point and Receive Sensitivity - Equipped with a high-power radio unit, Mesh Connector provides strong transmit power to facilitate enhanced Wi-Fi signal penetration.
  • Die Cast Aluminum Enclosure for Mesh Connector Outdoor - NEMA 6 (IP 67) rating, dust and water resistance, as well as physical durability withstand extreme weather conditions.

Features

Easy-to-Deploy Solution for Wi-Fi Coverage Expansion

  • Allow enterprise customers seamless connections at existing work places, warehouse districts and factory locations
  • Enable WISPs to expand Wi-Fi coverage to a wide range of public locations utilizing existing hotspot infrastructure

Transparent Bridge Functionality

  • Enables users to roam about freely within the extended coverage area without any interrupted access or IP address change
  • Easy to manage end users

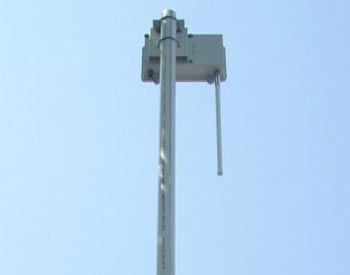

Mounting Bracket

High Indoor Transmit Power and Extensible Receive Sensitivity

  • Allow enterprises and WISPs to extend Wi-Fi coverage to large-scale indoor areas
  • Extensible receive sensitivity with external RP-TNC Male connector

Always-ON, Integrated Wi-Fi Access Point

  • Connect with the mesh via 802.11b/g Wi-Fi and Standard Ethernet
  • Indoor AP is always-ON even if there is no connection to the mesh / Citywide Wi-Fi

Dynamic Power Control

  • Intelligently use high power to communicate with the mesh and adjustable indoor power to provide coverage where needed
  • Maximize radio efficiency and network performance

Metallic Case

  • Industrial grade, rugged aluminum case enables deployment in a variety of locations
  • Mesh Connector Outdoor: NEMA 6 (IP 67) rating, dust and water resistance, as well as physical durability withstands extreme weather conditions

Cost Saving Wi-Fi Network Development

  • Utilize flexible and small-sized mesh connectors instead of costly mesh network nodes
  • Hardware Watchdog increases service availability and guarantees firmware integrity

Secure and Reliable Citywide Wi-Fi

  • Support authentication and encryption policies via 802.1x/WEP/WPA/WPA2/802.11i
  • Built-in firewall to protect customers from common Internet worms and attacks

Remote Management

  • Manageability via service provider-grade PePWave Central Management System (PCMS)
  • Device-level firmware control, device configuration, security alerts, and reports through one interface

PePWave Surf AP is a proven solution for citywide networks, where uninterrupted carrier-grade service is a no-compromise requirement. Its powerful transmission and outstanding reception capabilities guarantee the best service, even for customers far from the nearest wireless access point.


Specification

Model Mesh Connector E200 Mesh Connector 200 Mesh Connector 400 Mesh Connector E200-X Mesh Connector 400-X
Product Code MPW-201 MPW-200 MPW-400 MPW-203 MPW-401
Country/Region Europe US/International US/International Europe US/International
Functionality
Wi-Fi Repeater Yes
Mode Bridge Mode
Wi-Fi Specification
WAN 802.11 b/g
LAN 802.11 b/g
1 Fast Ethernet Port
Operating Frequency 2412-2472Mhz 2412-2462Mhz 2412-2462Mhz 2412-2472Mhz 2412-2462Mhz
Transmit Power
802.11b		 100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

200mW

23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

(+/- 1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/- 1.0dB)

 100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/- 1.0dB)
Transmit Power
802.11g OFDM		 20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
23dBm@36Mbps
21dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)		 20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11b		 -96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)		 -96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11g OFDM		 -94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)		 -94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)		 -94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)		 94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)		 -94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)
Security 802.1x, 64/128-bit WEP, WPA, WPA2, 802.11i
Hardware
Antenna

5dBi Omni Antenna

 Not Included
Antenna Connector RP-SMA Connector Female N-Type Connector
Enclosure Ruggedized Metal Enclosure Waterproof (IP67) Outdoor Metal Enclosure
Dimensions

127.1W x 107.4D x 32.1H mm.
5.0W x 4.2D x 1.3H in.

273W x 188D x 65H mm.
10.7W x 7.4D x 2.6H in.
Weight 330g
0.7lb 		1.7 kg.
3.8 lb.
Operational Specificaitons
Power Consumption 5W (Max.) 5W (Max.) 7W (Max.) 5W (Max.) 7W (Max.)
Power Input AC Adapter: AC Input 100 to 240V, DC Output 12V
Passive PoE Adapter : DC 12V		 Power over Ethernet 802.3af
(Adapter Not Included)
Operating Temperature -20~75°C
-4~167°F
Humidity 15 to 95%
Misc.
Certifications CE, RoHS FCC, RoHS FCC, RoHS CE, RoHS FCC, RoHS
Warranty

Package Content
(Mesh Connector E200, 200, 400)
  • 12V Power Supply
  • 5dBi Maganetic-base Omni Antenna
  • Passive PoE Adapter
  • Documentation CD-ROM

Package Content
(Mesh Connector E200-X, 400-X)
  • Mounting Kit
  • Installation Guide
  • Documentation CD-ROM
