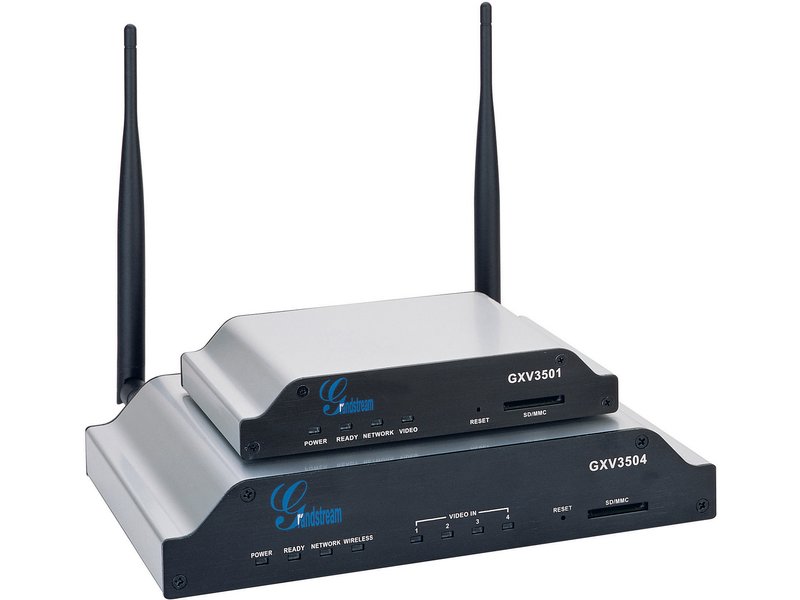

Grandstream GXV-3504

Grandstream GXV3504 IP Video Encoder - 4 Channels offers an excellent solution for IP enabling of traditional analog cameras for professional surveillance environments.

Виробник:

Код товару: # 2557

на
складі

Характеристики

Grandstream GXV3504 IP Video Encoder - 4 Channels

The GXV3504 is a next generation IP video server/encoder with powerful innovations. It packs a number of cutting-edge technologis including H.264 real time video compression (D1 resolution) with sharp image clarity at low-to-modest bandwidth, industry leading SIP/VoIP for full duplex 2-way audio and video streaming to mobile phones and video phones, PoE, embedded analytics, large pre-/post-event recording buffer, and advanced security protection. Its unique incorporation of the most comprehensive peripheral support for alarm control, local storage expansion, and wireless network connection, creates sophisticated and best-in-class control flexibility and scalability.

The GXV3504 can be managed with GSurf, Grandstream's intuitive video management software that controls up to 36 cameras simultaneously. The GXV3504 offers an excellent solution for IP enabling of traditional analog cameras for professional surveillance environments

GXV3504 Feature Highlights:

  • Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution
  • 4 Analog video inputs (BNC) and 4 alarm input & outputs
  • Audio input and output, RS485/232, PTZ control
  • 24MB pre-/post-event recording buffer per port
  • USB 2.0 port and SD slot for storage/wireless network card
  • Integrated Power-over-Ethernet (802.3af), optional antenna for wireless network
  • Embedded video analytics including motion (up to 16 target areas) & video loss detection
  • SIP/VoIP support for two-way audio communications and video streaming to mobile phones and video phones
  • Built-in high performance streaming server to allow up to 12 simultaneous D1 viewers or 25 CIF viewers.

Channels:
4

Video Compression:
H.264 BP @ Level 3.0, JPEG, Motion JPEG

Max Video Resolution:
Full D1: 720 x 576 (PAL), 720 x 480 (NTSC)

Max Frame Rate in Max Video Resolution
75fps / 62.5fps (NTSC/PAL)
4 Ports at CIF at full rate, or 2 Ports at D1 & 2
Ports at CIF at full rate; or 4 Ports at D1 at reduced rate

Video Bit Rate
32 Kbps - 2Mbps

Video Input
4 (BNC, voltage 1.0Vp-p, resistance 75 ohm)

Audio Input
4 (BNC), 3.5mm LINE-IN

Audio Output
3.5mm LINE-OUT

Audio Compression
G.711, G.726

Alarm Input
4

Alarm Output
1(125VAC/0.5A, 30VAC/2A)

PTZ Control
Yes

Serial Ports
RS485 / RS232

Embedded Analytics
Motion Detection (up to 16 target areas), video loss (pending)

Pre-/post Alarm Buffer
24MB (per channel)

Snapshots
Trigger upon events, send via email / FTP

Multi-streaming-rate for Preview and Recording
Yes

Security
Video watermark, HTTPS, password

Power over Ethernet (PoE)
Standard, IEEE 802.3af Class 3

Peripheral Ports
SD 2.0, USB Host 2.0

Wi-Fi (802.11b/g)
5dB external antenna, GXV3504W only

SIP/VoIP Support
Yes

Dimensions (L x W x H)
230mm x 155mm x 43mm

Weight
1kg

Temperature / Humidity
-10ºC - +55ºC (14ºF - 131ºF), Humidity 10-90% RH (non-condensing)

Power
Output: 12VDC/1.0A; Input: 100-240VAC, 50-60Hz

Compliance
FCC Part 15, Subpart B Class B
EN 55022 Class B, EN 6100-3-2
EN61000-3-3, EN 55024, EN 60950-1
C-tick AS/NZS CISPR 22, CISPR 24.
