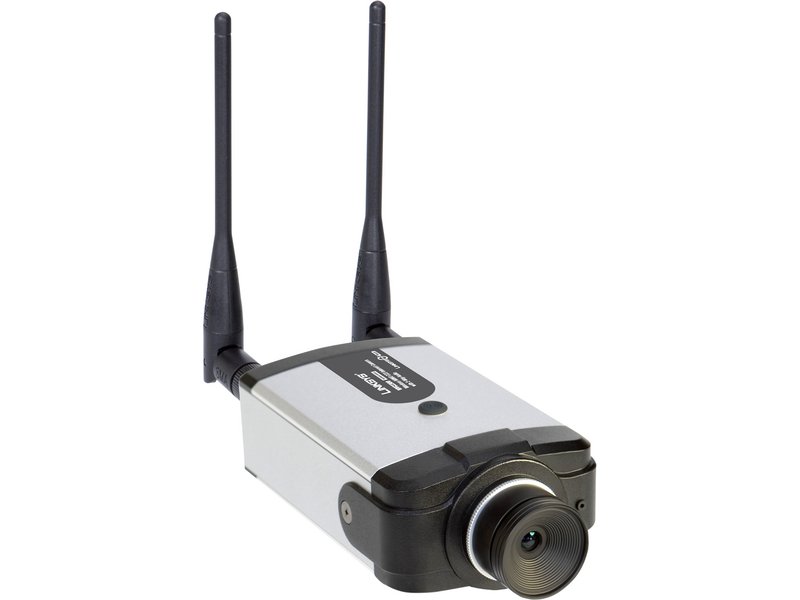

Linksys Wireless-G Business Internet Video Camera WVC2300

The Linksys Wireless-G Business Internet Video Camera WVC2300 uses a high-quality progressive scan CCD Sensor delivering good quality video.

Виробник:

Код товару: # 1840

на
складі

Характеристики

High-Quality Wireless Video Surveillance Platform Provides Flexible Installation

Highlights

  • Wireless box camera with interchangeable lenses and I/O ports that allow flexible installation for multiple applications
  • High-quality CCD sensor with low-light sensitivity and an IR filter switcher provides optimal video image under a range of conditions
  • Simultaneous dual codecs provide optimal combination of viewing and storage of video
  • Two-way audio, IP multicast, 3GPP (3rd Generation Partnership Project), and lots of other advanced features make this solution ideal for surveillance deployments

Cisco® Small Business Video Surveillance products provide customizable ways for small business owners to monitor and protect their companies. These high-quality solutions can be optimized for many different applications and sites. Each camera can be quickly mounted using the bracket included in the package. Their compact form factor also enables the cameras to be put inside a protective enclosure for interior or exterior installations. The cameras use removable CS-mount lenses and can be customized with optional zoom, wide-angle, vari-focal, auto-iris, and other types of lenses as required for a specific application or setting.

The Cisco WVC2300 Wireless-G Business Internet Video Camera can be mounted on any pan-tilt (PT) base that supports the Pelco D protocol and can be remotely rotated and controlled through an RS-485 interface. It has two input and two output ports, which can be used to connect the camera to an alarm panel, siren, passive infrared (PIR) sensors, smoke detectors, lighting switch (on/off), door sensors, etc.
The Cisco WVC2300 uses a high-quality progressive-scan charge-coupled device (CCD) sensor, delivering good-quality video. The CCD sensor also has low-light sensitivity so video can be captured even in environments with very low light or during near-dark times of day. Additionally, the camera incorporates an infrared (IR) cut filter that, when used with a separate IR lamp, allows for video capture in total darkness.

The Cisco WVC2300 camera supports dual codecs (MPEG-4 and MJPEG). Both codecs can be used simultaneously. MPEG-4 gives efficient bandwidth consumption with good-quality compression and is optimal for real-time viewing of video. MJPEG gives optimal video quality with lossy compression, making it ideal for large-volume storage to a network attached storage (NAS) device.

The Cisco WVC2300's audio capabilities include two-way audio, embedded microphone, external speaker and microphone ports, and voice compression. With extensive feature support, such as IP multicast, Real Time Streaming Protocol (RTSP), Real Time Protocol (RTP), and 3rd Generation Partnership Project (3GPP), it enables video to be viewed from multiple endpoints and client applications such as 3G phones, and QuickTime clients on PCs or Wi-Fi phones. The wireless capabilities of the WVC2300 include support for 1x2 multiple-input, multiple-output (MIMO), providing better range than traditional 802.11g, and strong wireless security utilizing Wi-Fi Protected Access (WPA). Support for multiple network protocols like 802.1p priority, 802.1Q VLANs, and Dynamic DNS (DDNS), make the solution ideal for multiple IP surveillance applications. The cameras can also be managed securely using HTTPS.

Features
  • Standard box-type camera allows for flexible installation
  • Mounts in a standard outdoor or indoor enclosure
  • Provides controls for mounting on a Pelco pan/tilt base to control movement remotely
  • Removable CS-mount lens enables the camera to be customized for multiple applications - including zoom lens, wide-angle, vari-focal, and auto-iris lenses
  • 1/4-in. progressive-scan CCD sensor delivers good-quality video
  • Low-light sensitivity with high-quality lens, sensor, and programmable IR cut filter capability
  • Audio input/output for external microphone and/or speaker
  • I/O ports facilitate alarm triggers, turn lights on and off, etc.
  • IEEE 802.11b/g wireless support with 1x2 MIMO offers better wireless range and coverage
  • Dual codecs (MPEG-4 and MJPEG) supported simultaneously
  • IP multicast support
  • RTSP video/audio streaming to unicast and multicast clients
  • 4x digital zoom; can also use optical zoom with appropriate interchangeable lens
  • 3GPP allows viewing of video on a mobile device
  • Motion detection with event notifications to an email account or alarm log in the monitoring software
  • JPEG snapshots at multiple resolutions that can be sent to an FTP server
  • Overlay watermarks/graphics and text
  • Up to 10 unicast users and unlimited multicast users
  • Built-in web server for remote access over IP
  • Secure control via HTTPS
  • Includes software for monitoring and recording up to 16 cameras simultaneously



Standards - IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.1p (quality of service [QoS] priority), IEEE802.1Q (VLAN), 802.11e (wireless QoS)

Protocols supported - TCP/IP, HTTP, Dynamic Host Configuration Protocol (DHCP), Simple Mail Transfer Protocol (SMTP), FTP, Network Time Protocol (NTP), DNS, Universal Plug and Play (UPnP), RTP, RTSP, and DDNS

Ports - Ethernet, microphone IN, speaker OUT, power (12V, 1A), general-purpose I/O (GPIO), 4-pin IRIS port

Buttons - Reset

Cabling type - Unshielded twisted pair (UTP) Category 5

LEDs - Power, Network

Camera type - Box

I/O ports
• RS-485 x 1 (2 pins) - supports Pelco D protocol commands
• Input control x 2 (2 pins)
• Output control x 2 (2 pins)

Lens
Sensor - 1/4-in. progressive CCD sensor
Illumination - 0.4 LUX at f1.7
Lens type - CS-mount lens, fixed focus; adapter included for lenses that require more distance between sensor and lens
Focal length - 500mm~infinity (for included lens)
Field of view - 60 (for included lens)
Video resolution - 640 x 480 (VGA), 320 x 240 (QVGA), 160 x 120 (QQVGA)
Frame rate - 1 to 30 frames per second (selectable)
Iris - Provides iris control for CS-mount auto-iris lens when attached

Setup/Configuration
Web user interface - Built-in web user interface for easy browser-based configuration (HTTP)

Management
Web browser
• Internet Explorer 5.x or later
• Limited support for Netscape and Firefox. Browser controls for pan/tilt/zoom (PTZ), audio, and motion detection are limited or not supported with Netscape and Firefox.
Event logging - Event logging (syslog)
Web firmware upgrade - Firmware upgradable through web browser

Video Compression
Dual codec
 • MPEG-4 simple profile
• MJPEG
• Simultaneous dual stream
Snapshot - JPEG
Modulation - National Television System Committee (NTSC) and Phase Alternating Line (PAL)
Image settings - Brightness and contrast
Zoom - 4x digital zoom
Night vision - IR cut filter for low light
Video controls - Auto white balance (AWB), auto exposure (AES)
Image controls - Select video by quality, bandwidth, and frame rate
Format - 3GPP for use with 3G phones

Alerts
Motion detection - 4 detection areas with individual sensitivity
Email alert - 3 email addresses
FTP uploading - FTP server address and login settings
Instant messaging - Jabber client support
Scheduled - Schedule by day or time
Triggers - Input 1, Input 2, motion detection
Actions - Output 1, output 2, messaging, email, FTP

Audio
Summary
 • 2-way audio
• Built-in microphone: 6 mm, -40 db + 3 db
• Microphone input: 3.5-mm phone jack
• Speaker output: 3.5-mm phone jack
Compression - G.726: 16 kbps, G.711 A-law and µ-law
Sampling rate - 8 kHz
Default bit rate - 16 kbps

Management Utility
Monitoring/recording software
• Monitoring and recording for up to 16 cameras
• Advanced search histogram or by time and date
• Recording set up to record by motion trigger, manual, or schedule; recording and playback

Security
Wired Equivalent Privacy (WEP)/WPA - WEP 64 bit/128 bit, WPA Temporal Key Integrity Protocol (WPA-TKIP), WPA Pre-Shared Key (WPA-PSK)
User list - User rights list to view video and/or to control camera functions
Username/password - Logon authentication: 20-character username and 8-character password
Kensington lock - Physical security option

Network
RTP/RTSP - RTP and RTSP allow for viewing from any client supporting these protocols, like 3G phones or QuickTime client
NTP - Keeps time of camera in sync with your network
SMTP - Allows video clips to be emailed
FTP client - Facilitates scheduling transfer of images to an FTP server
DDNS - Facilitates reaching the camera by a name irrespective of the camera's IP address. Supports DDNS, TZO, and 3322 DDNS services
UPnP - Allows autodiscovery of the camera by other UPnP devices
IP filtering - Allow or disallow access by IP address

Power
Power options - External power adapter: 12V 1A, 110~120V AC/60 Hz, switching
Power consumption - 10W

Dimensions : 4.72 x 2.99 x 1.81 in. (120 x 76 x 46 mm)
Unit weight : 1.15 lb (0.52 kg)
Power: External power adapter 12V DC 1A 110~120V AC/60 Hz switching
Certification: FCC Part 15C Class B, CE, UL, EMC/EMI Part 15B Class B for US
Operating temperature: 32 to 122F (0 to 50C)
Storage temperature: -4 to 158F (-20 to 70C)
Operating humidity: 10% to 80%
Storage humidity: 0% to 19%

Package Contents

  • Cisco WVC2300 Wireless-G Business Internet Video Camera
  • Stand kit
  • Antennas (2)
  • Power supply (12V 1A)
  • 6-foot Ethernet cable
  • CS-mount lens adapter ring for wider focal length lens
  • Allen wrench
  • Quick installation guide
  • Setup CD

Minimum Requirements
  • Wired Ethernet or wireless 802.11b/802.11g network
  • Network adapter with Ethernet network cable and TCP/IP installed per PC
  • Switch/router to support multiple connection points
  • Internet Explorer 5.x or later with ActiveX support for viewing
  • Microsoft Windows Vista, XP, 2000, ME, or 98SE
  • 2-GHz Pentium 4 or AMD Athlon-class CPU with 512 MB RAM
  • 128-MB AGP video adapter

Product Warranty
3-year limited hardware warranty with return to factory replacement and 90-day limited software warranty.
