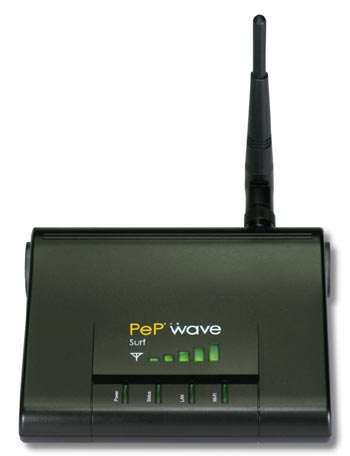

Pepwave Surf 200

Pepwave Surf 200, 200 mW Wi-Fi CPE designed for Citywide Wi-Fi. Does not include integrated home AP.

Виробник:

Код товару: # 1558

на
складі

UP DOWN

Характеристики

PePWave Surf 200 (200 mW) CPE

Introducing the stable, user-friendly, reliable, and flexible Wi-Fi CPE designed for Citywide Wi-Fi.

The PePWave Surf series of Wi-Fi modems is an ideal solution to flexibly extend Citywide Wi-Fi to indoor areas. Does not include integrated home AP.

  • High Power and Receive Sensitivity.
    Each PePWave Surf model is equipped with a high-power radio unit and a 5dBi antenna that provide sufficient transmit power and receive sensitivity to facilitate enhanced Citywide Wi-Fi signal penetration.
  • Dynamic Power Control.
    Its unique dynamic power control capability allows PePWave Surf AP to use high power when communicating with the metro-scale mesh network, and retain a lower power setting for indoor home devices – thus maximizing radio efficiency and network performance.
Signal Bars
  • A group of five LEDs built-in on the top panel displaying in real-time the strength of received signals
  • Easy to find the best location with strongest signals

High Transmit Power and Extensible Receive Sensitivity

  • 200mW transmit power for stable and reliable connections with Citywide Wi-Fi
  • Extensible receive sensitivity with external RP-TNC Male connector

Dynamic Power Control

  • Intelligently use high power when communicating with the metro-scale mesh network
  • Maximize radio efficiency and network performance

Secure and Reliable Citywide Wi-Fi

  • Provide secure authentication and encryption via 802.1x/WEP/WPA/WPA2/802.11i
  • Built-in firewall to protect customers from common Internet worms and attacks

Flexible Client Devices Management

  • Built-in DHCP server and NAT routing to manage client devices
  • Port forwarding to support gaming and special applications

User Friendly and Easy Self Provisioning

  • True plug-n-play
  • Customizable, built-in web portal for simple web-based self configuration
  • Support automatic configuration
  • Hardware Watchdog increases sevice availability and guarantees firmware integrity

Bandwidth Control

  • Allow easy provisioning of different service levels

Co-branding and Customization

  • Site-specific connection profiles
  • Service Provider Program (details...)

Remote Management

  • Manageability via service provider-grade PePLink Central Management System (PCMS)
  • Device-level firmware control, device configuration, security alerts, and reports

Stylish Indoor Packaging

  • Lightweight, small factor for residential use
PePWave Surf is the proven solution for Citywide Wi-Fi, where uninterrupted carrier-grade service is a no-compromise requirement. Its powerful transmission and outstanding reception capabilities guarantee the best service, even for customers far from the nearest Wi-Fi access point.


Specification

Model Surf E200 Surf AP E200 Surf 200 Surf AP 200 Surf AP 400
Product Code SPW-202 SPW-203 SPW-200 SPW-201 SPW-400
Country/Region Europe US/International
Functionality
Wi-Fi Receiver Yes
Wi-Fi Access Point   Yes   Yes Yes
Mode NAT Mode
Wi-Fi Specification
WAN 802.11 b/g
LAN 1 Fast Ethernet Port 802.11 b/g
1 Fast Ethernet Port		 1 Fast Ethernet Port 802.11 b/g
1 Fast Ethernet Port		 802.11 b/g
1 Fast Ethernet Port
Operating Frequency 2412-2472Mhz 2412-2462Mhz
Transmit Power
802.11b		 100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

200mW

23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

(+/-1.0dB)

200mW

23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

(+/-1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/-1.0dB)

Transmit Power
802.11g OFDM		 20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)

20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)

 23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
23dBm@36Mbps
21dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
23dBm@36Mbps
21dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11b

-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)

-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)

-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11g OFDM		 -94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB) 		-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB) 		-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB) 		-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB) 		-94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)
Security 802.1x, 64/128-bit WEP, WPA, WPA2, 802.11i
Hardware
Signal Bars Yes
Antenna 5dBi Omni Antenna
Antenna Connector RP-SMA Connector
Enclosure Indoor Plastic Enclosure
Dimensions

132.7W x 38.6D x 118.1H mm.
5.2W x 1.5D x 4.6 H in.
Weight

240 g.
0.5 lb.
Operational Specificaitons
Power Consumption 5W (Max.) 5W (Max.) 5W (Max.) 5W (Max.) 7W (Max.)
Power Input AC Adapter: AC Input 100 to 240V, DC Output 12V
Operating Temperature -20~75°C
-4~167°F
Humidity 15 to 95%
Misc.
Certifications CE, RoHS FCC, RoHS
Warranty

Package Content
  • 12V Power Supply
  • 5dBi Omni-directional Antenna
  • Windows Mount - Suction Cup x 2
  • Setup Guide
  • Ethernet Cable
  • Documentation CD-ROM
